Front Air-Spring Suspension

  Technical Data Sheet
Installation Guide - Shock
Installation Guide - Mounts



Front Air-Spring Suspension See the E-STORE CATEGORY The VariShock air-spring suspension system is a bolt-in, combination air spring and shock absorber that directly replaces the OEM coil springs and shocks. Air-spring systems are available with single- or double-adjustable valving and provide complete control over ride quality, handling performance and ride height. The VariShock air-spring patented design makes it the only fully adjustable, direct bolt-in air suspension for 1964-1970 Mustangs. System uses OEM or TCP spindle (TCP SPND-01).

VariShock Air-Spring
Given the available space and factory mounting positions, our sister company, VariShock set out to find the best product solution possible. The end result was a newly designed, combination air spring and shock absorber enabling complete ride control as well as adjustable ground clearance. When fully deflated, the vehicle rests 5-6” below stock ride height and can be raised to driving height at the push of a button. A compressor system is required for operation.

Single-Adjustable (SA) or Double-Adjustable (DA)
The patented VariShock air spring is available in QuickSet 1, single-adjustable (Q1) or QuickSet 2, double-adjustable (Q2) versions. VariShock Q1 features a 16-position, positive-click knob that adjusts overall resistance of the shock in both compression and rebound. VariShock Q2 features two, independent 16-position knobs enabling up to 256 different combinations of instant adjustment. One knob sets the bump (compression) range; the other sets rebound (extension). Each knob is laser-etched with directional arrows and “plus/minus” symbols that clearly indicate which direction achieves the desired adjustment. Additional arrows etched into the VariShock Q2 base reveal which knob sets bump, and which sets rebound. All adjustments are made in seconds, without removing or unbolting the shock.



Front Air-Spring Suspension System
Purchase ItemTCP FASS-FD - Mustang 64-73, Ford/Mercury 60-77

Includes: upper arms, lower arms, strut rods, shock mounts, single-adjustable air-spring VariShocks, and mounting hardware (compressor system sold separately)

Model Year
Cougar 1967-1973
Mustang 1964-1973


Expanded
Applications Chart

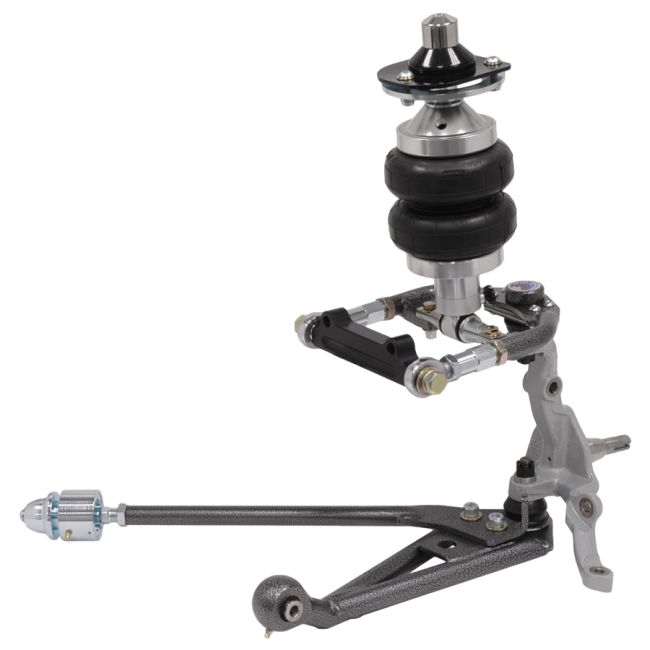

Front Air-Spring Suspension (front view)

Shown with optional spindle and dropped pivot shaft.

VariShock Air-Spring with OEM Control Arm Single Adjustable

Bolt-On Air-Spring Conversion, Single Adjustable
Purchase ItemVAS 13M11F1 - Mustang 64-66, Ford/Mercury 60-77
Purchase ItemVAS 13M21F1 - Mustang 67-73, Ford/Mercury 66-73

Includes: shock mounts, single-adjustable air-spring VariShocks, and mounting hardware
(compressor system sold separately)

Double Adjustable

Bolt-On Air-Spring Conversion, Double Adjustable
Purchase ItemVAS 13M11F2 - Mustang 64-66, Ford/Mercury 60-77
Purchase ItemVAS 13M21F2 - Mustang 67-73, Ford/Mercury 66-73

Includes: shock mounts, double-adjustable air-spring VariShocks, and mounting hardware
(compressor system sold separately)
